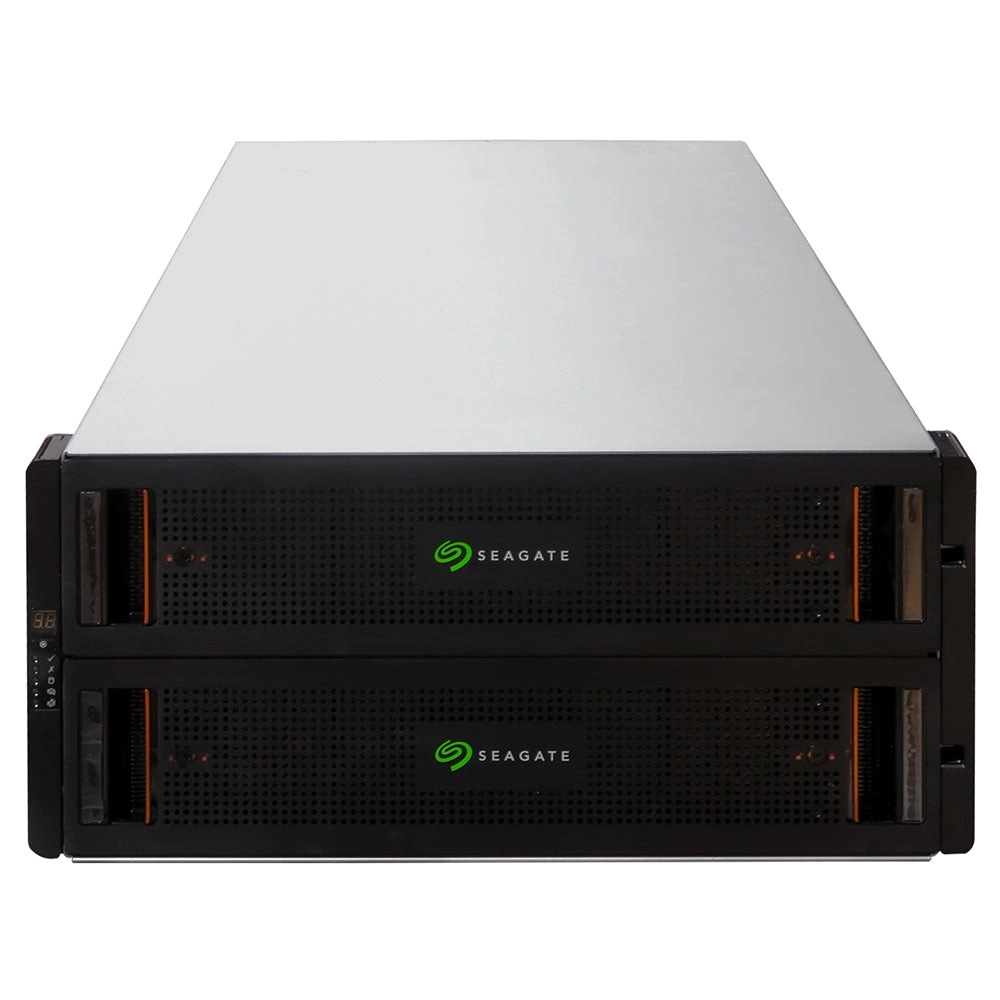

Seagate Exos E 5U84 JBOD Enclosure
Seagate Exos E 5U84 is the datasphere's high-capacity, high-performance platform that can handle extreme data growth.
Exos also available with AP-LS-1 controller. Click link to view product page.
Highlights
- Compatible with any brand of SAS HDD

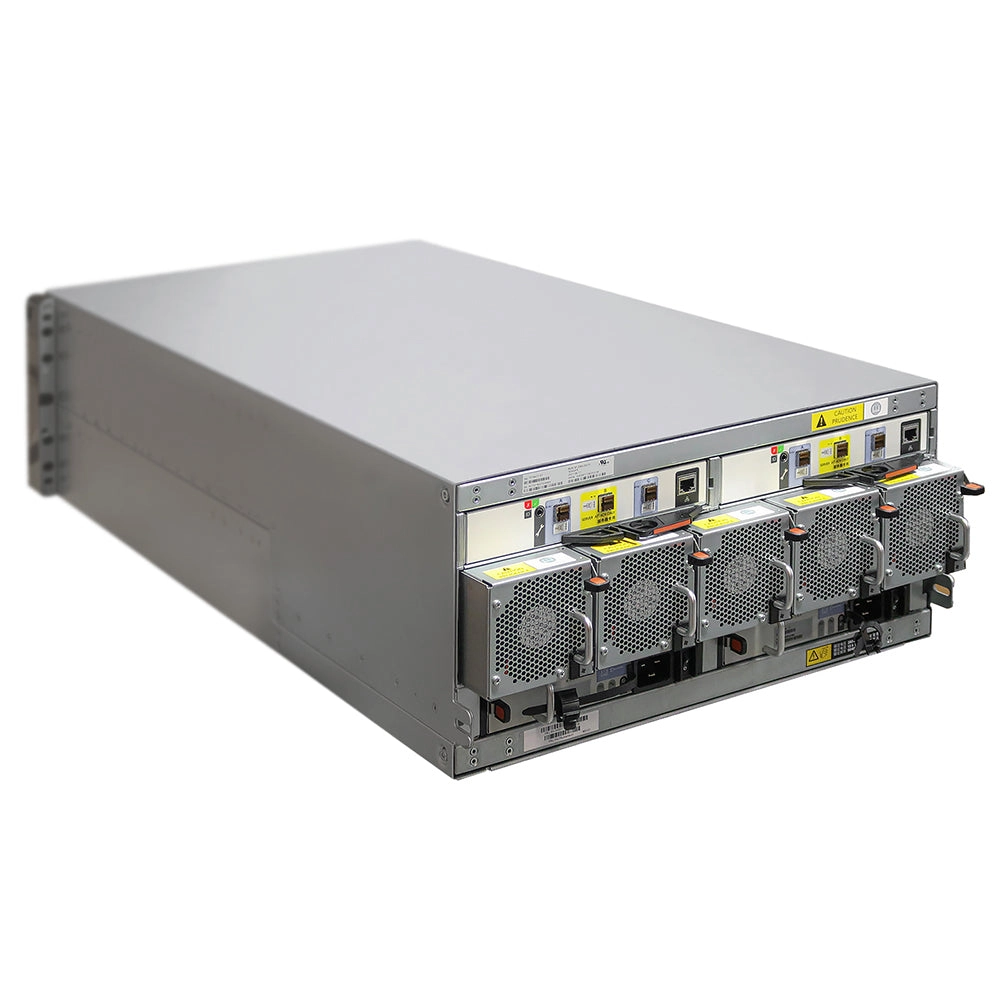

- Deliver peace of mind with features to protect data, including dual power supplies, fan modules, and I/O modules, as well as dual data paths to all drives
- Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology
- Easily manage cables, universal ports, self-configuration controls, and standardized zoning
- Seamlessly expand to 336 drives as business grows

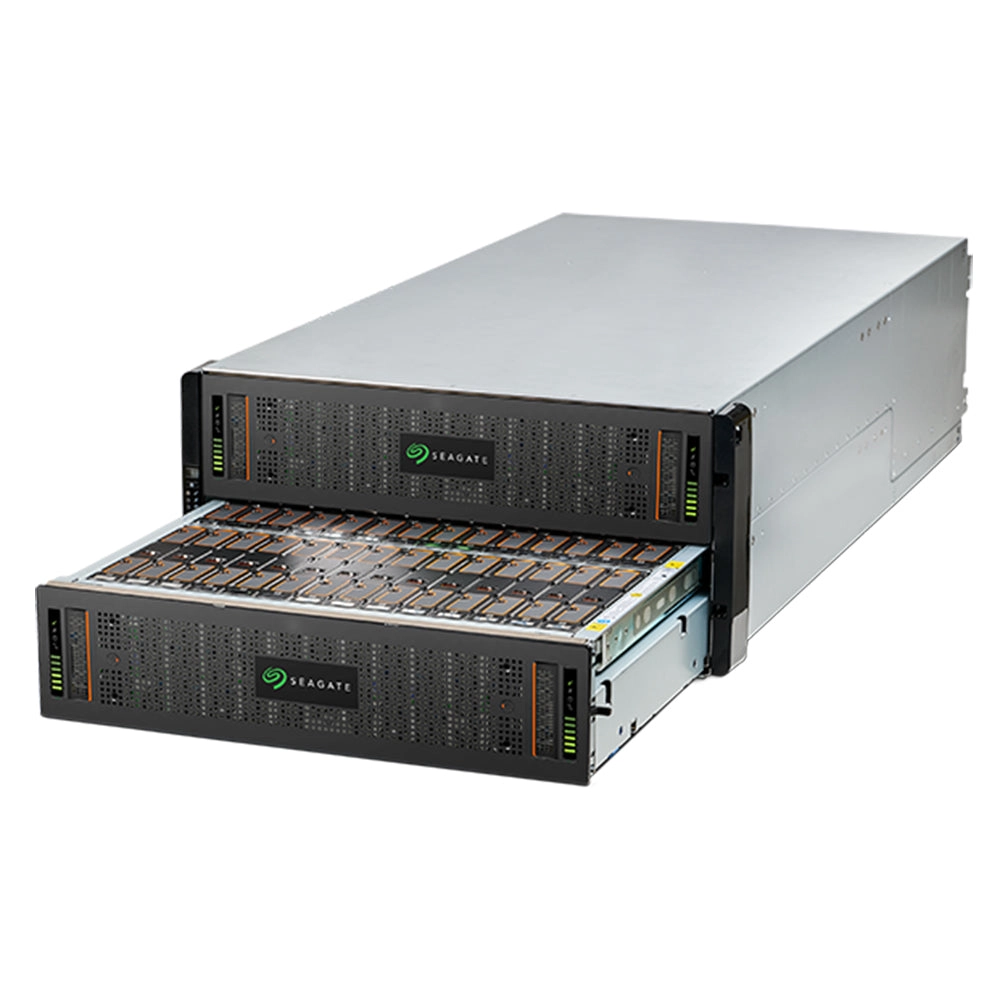

- Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
- Maximum of 28.8GB/s in a dual controller configuration
- Seller Refurbished - 6 Month Warranty on JBOD Unit

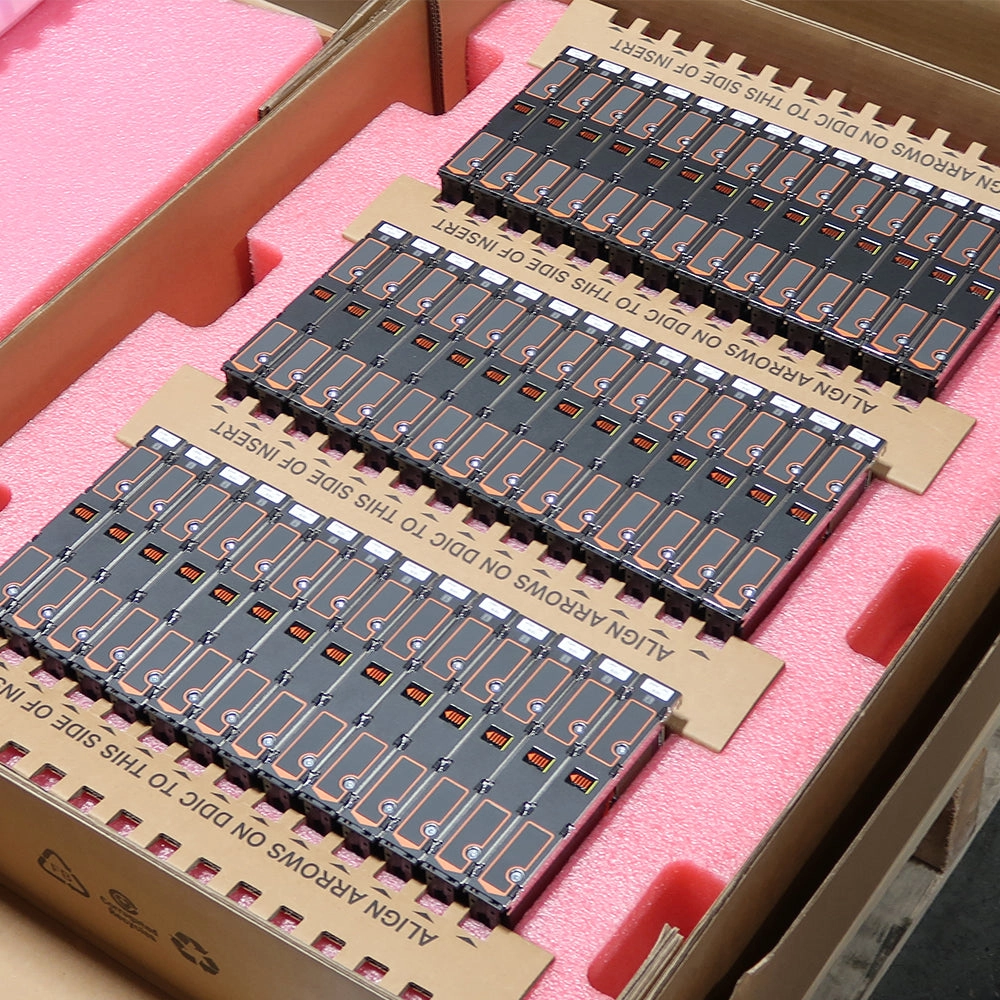

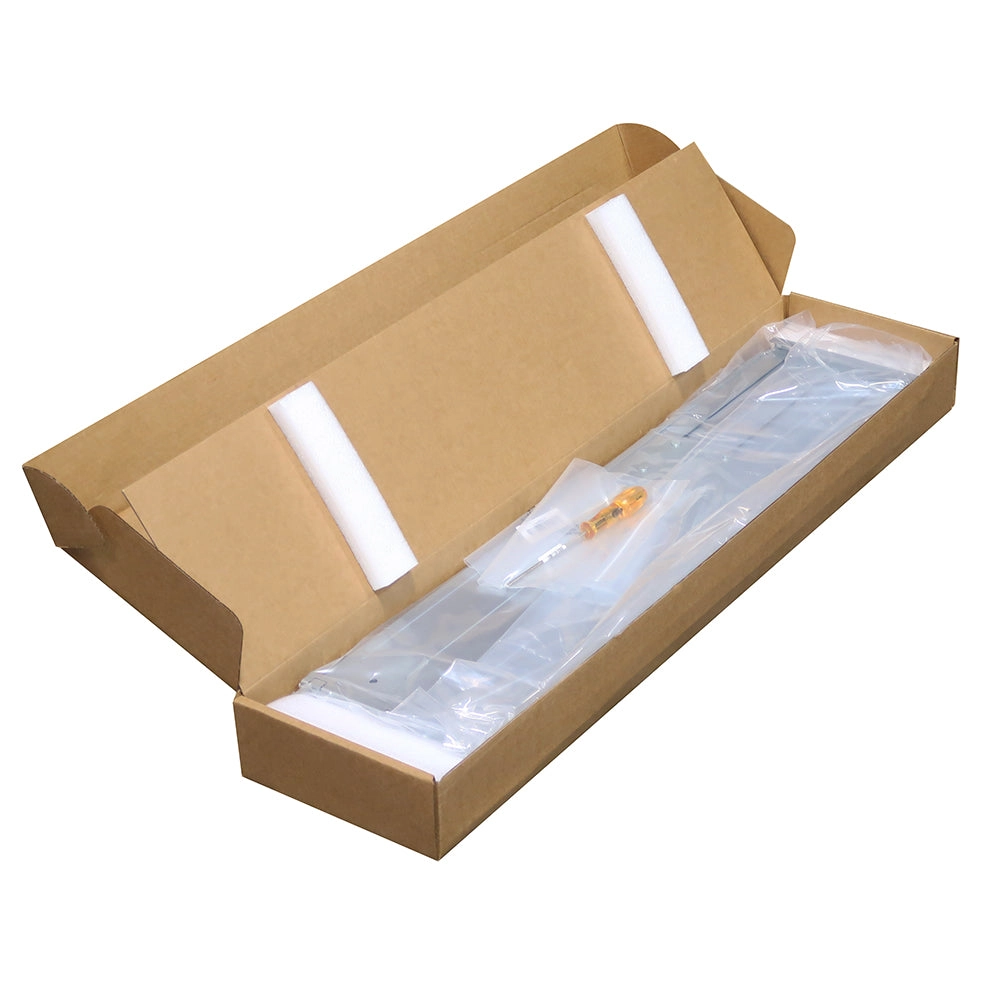

- JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable
Note: Many configurations available, contact us via or for custom options.
Datasheet:
| Max. Drives | 84 x 3.5" drive bays |
| Warranty | 6 Month SPD warranty on JBOD - Warranty on drives will be based on the drive condition. |
| Drive Interface | Dual-ported 12Gb/s SAS |
| Available Drive Capacities | HDD up to 20TB CMR |
| Host Interface | Dual redundant I/O Modules (IOM) |
| Weight | 135kg / 298 lb (with drives, no rail kit) |
| Hot-Swappable Components | Drives, power supply units (PSU), cooling modules, side planes, and SBB I/O modules |
| Physical Dimensions | Height: 220mm / 8.65 in (5 EIA units) Width: 483mm / 19 in (IEC rack compliant) Depth: 933mm / 36.75 in |
| Management | CLI via RS232 and 100Base-T port, SCSI enclosure services (SES) via SAS SFF-8644 ports |
| Power | 200V-240V AC 60Hz/50Hz |
| Environmental | Temperature: 5 C to 35 C (de-rate 5 C above 2133m) Humidity: 10% to 80% noncondensing |
